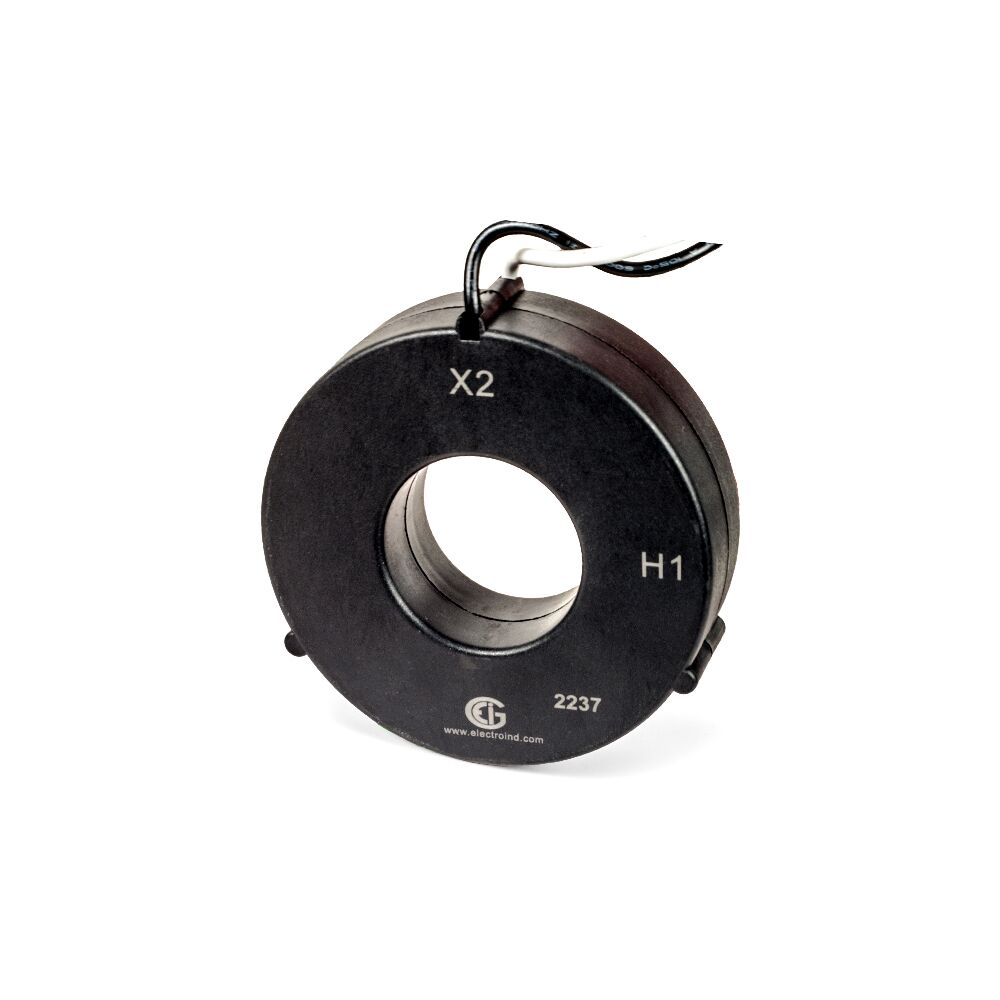

EI-04RL-400
$53.00
2 Day Shipping on Most Products
Description
EIG stocks a wide range of current transformers for energy metering applications. From our online store, you can buy current transformers that meet your application needs.
We have a large inventory of current transformers that are available to ship as early as the next day. To buy current transformers, enter the number you want and click Add to Cart.
Specifications:
- Standard Primary Input Current – 400 A
- Secondary Output – 5 A
- Frequency – (50 – 400) Hz
- Insulation Level – 600 V AC, BIL 10 KV AC Full-wave
- Mounting Styles – Round, with 6 ft. Wire Leads
- Approximate Weight – 0.93 lbs. / 420 g
- UL 61010B-1, CSA C22.2 1010-1
Additional information
Weight | 1.1 lbs |
---|---|
Dimensions | 8 × 7 × 6 in |
