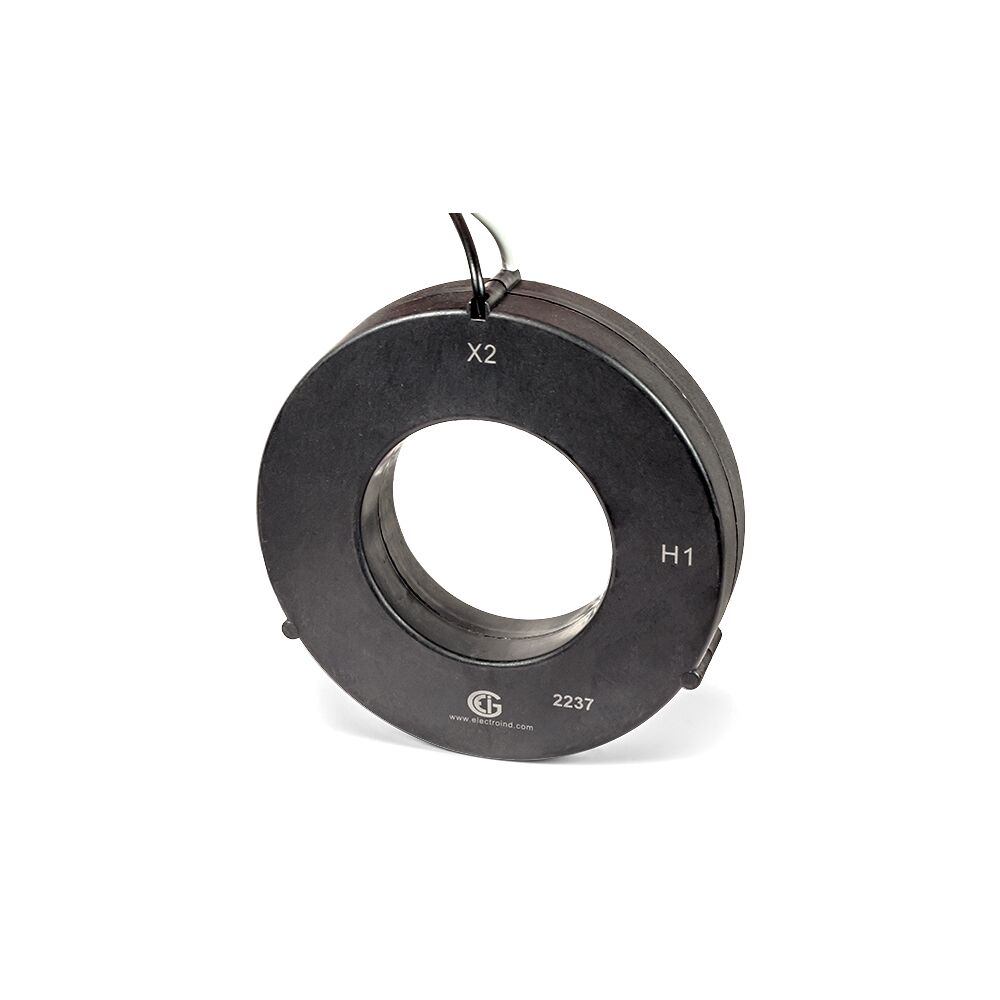

EI-07RL-600

$56.76

Next Day Shipping on Most Products

SKU: EI-07RL-600 Categories: ,

Description

EIG stocks a wide range of current transformers for energy metering applications. From our online store, you can buy current transformers that meet your application needs.

We have a large inventory of current transformers that are available to ship as early as the next day. To buy current transformers, enter the number you want and click Add to Cart.

Specifications:

  • Standard Primary Input Current – 600 A
  • Secondary Output – 5 A
  • Frequency – (50 – 400) Hz
  • Insulation Level – 600 V AC, BIL 10 KV AC Full-wave

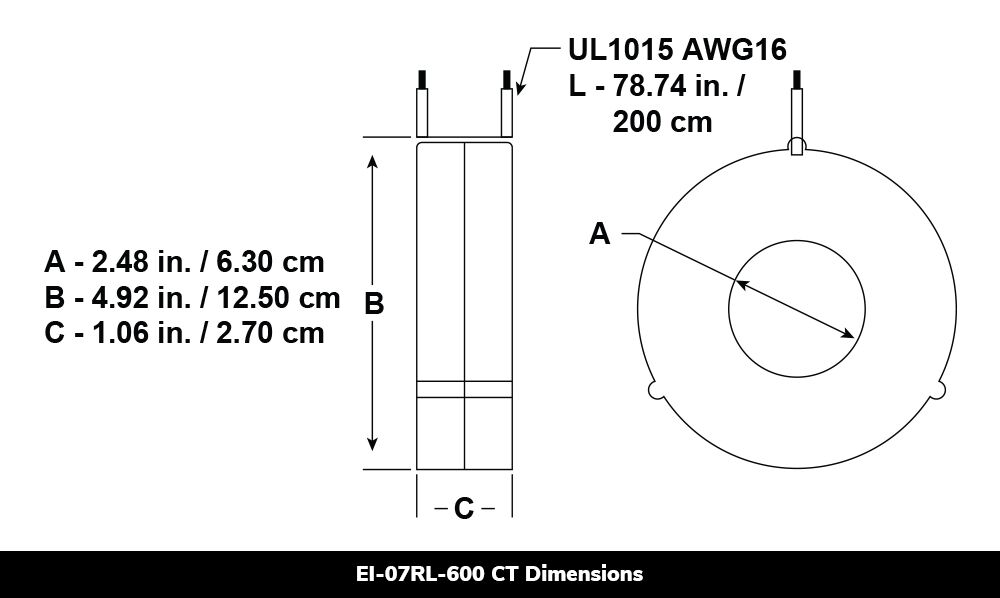

  • Mounting Styles – Round, with 6 ft. Wire Leads
  • Approximate Weight – 0.93 lbs. / 420 g
  • UL 61010B-1, CSA C22.2 1010-1

Part No. Ratio Window Accuracy Burden
EI-07RL-600 600/5 A 2.48″ ± 1% 30

Additional information

Weight 1.1 lbs
Dimensions 8 × 7 × 6 in
