B10U – ANSI Optical Probe

$395.00

Next Day Shipping on Most products
The B10U is a zero power optical communication probe.

SKU: B10U Category:

Description

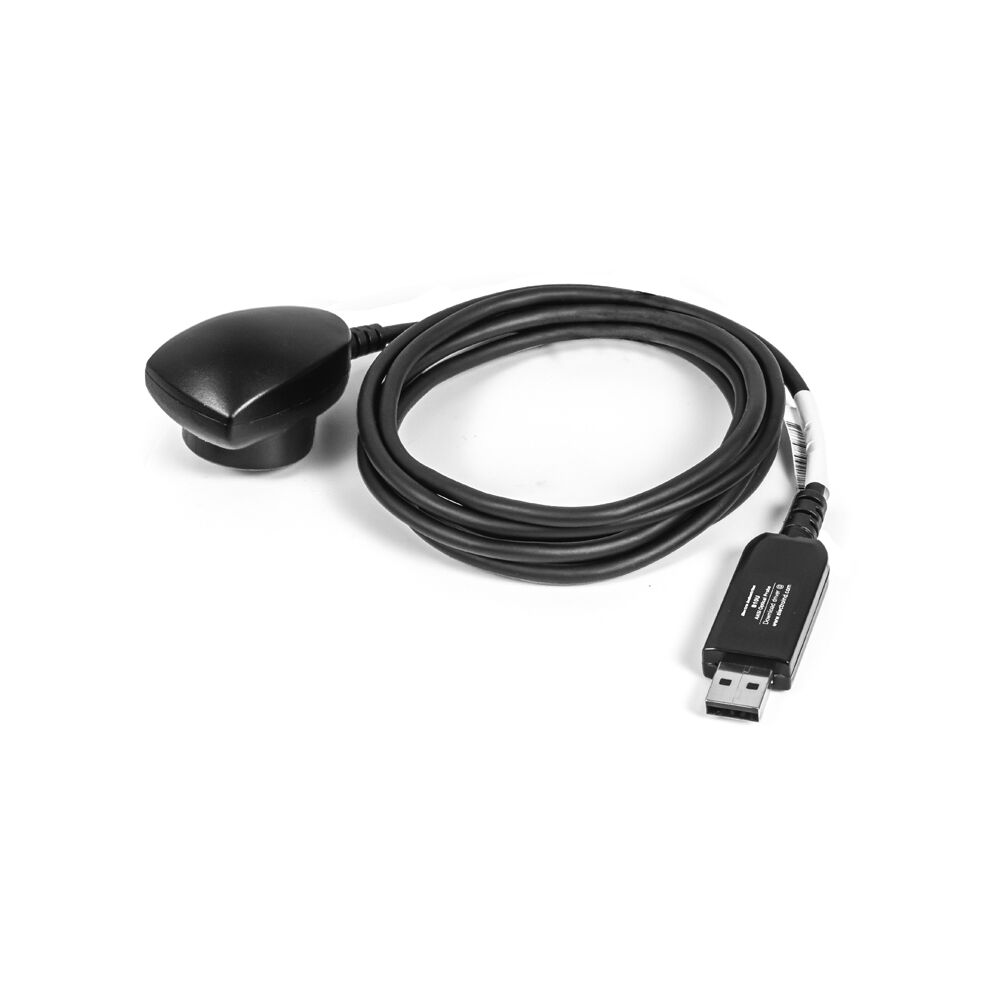

The B10U is an ANSI type 2, zero power, optical communication probe. Its bidirectional interface utilizes infrared light. It provides an ANSI rated optical communication interface for programming and reading of EIG’s socket revenue meters through their optical port. When connected, the B10U permits isolated communication with the meter. The B10U is compatible with Windows 2000/XP/Vista/7/8/10.

Features

  • Requires No Power Supply
  • Baud Rate – up to 38400 bps
  • ANSI Type 2 Compatible
  • Works Great with Shark® 270 and Nexus® Series Socket Revenue Meters
  • Includes 2 Meter Cable
  • Bidirectional Interface
  • Strong Magnetic Adhesion that Complies with IEC 62056-21/ANSI C12.18
  • USB 2.0 Standard Connector

Download Datasheet

Driver Installation Guide

Download USB Driver

Additional information

Weight 0.75 lbs
Dimensions 6 × 6 × 7 in
