• Shark 270 Revenue Energy Meter

    Shark® 270

    Revenue Energy Meter

    • Meets and exceeds ANSI C12.20 Class 0.1% and IEC 62053-22 CL 0.2S standards
    • Time of Use, Transformer/Line Loss Compensation, and Test Mode
    • Extensive power quality and waveform recording
    • Up to 128 MB memory for data logging and storage
    • Level 2 DNP3 supports SCADA applications
    • Multiple communication ports, including optional Ethernet or IEC 61850
    • *New 4G LTE™ Underglass Wireless Cellular
    • Advanced security with Sealing Switch capability
    • Data Push to Cloud Servers with Ethernet Card and Enhanced Security for Ethernet Communication

    *LTE is a trademark of ETSI

    Shark® 270

    Revenue Energy Meter

    Shark® 270

    Revenue Energy Meter

    • Meets and exceeds ANSI C12.20 Class 0.1% and IEC 62053-22 CL 0.2S standards
    • Time of Use, Transformer/Line Loss Compensation, and Test Mode
    • Extensive power quality and waveform recording
    • Up to 128 MB memory for data logging and storage
    • Level 2 DNP3 supports SCADA applications
    • Multiple communication ports, including optional Ethernet or IEC 61850
    • *New 4G LTE™ Underglass Wireless Cellular
    • Advanced security with Sealing Switch capability
    • Data Push to Cloud Servers with Ethernet Card and Enhanced Security for Ethernet Communication

    *LTE is a trademark of ETSI

    • Meets and exceeds ANSI C12.20 Class 0.1% and IEC 62053-22 CL 0.2S standards
    • Time of Use, Transformer/Line Loss Compensation, and Test Mode
    • Extensive power quality and waveform recording
    • Up to 128 MB memory for data logging and storage
    • Level 2 DNP3 supports SCADA applications
    • Multiple communication ports, including optional Ethernet or IEC 61850
    • *New 4G LTE™ Underglass Wireless Cellular
    • Advanced security with Sealing Switch capability
    • Data Push to Cloud Servers with Ethernet Card and Enhanced Security for Ethernet Communication

    *LTE is a trademark of ETSI

    Shark® 270

    Revenue Energy Meter

    • Meets and exceeds ANSI C12.20 Class 0.1% and IEC 62053-22 CL 0.2S standards
    • Time of Use, Transformer/Line Loss Compensation, and Test Mode
    • Extensive power quality and waveform recording
    • Up to 128 MB memory for data logging and storage
    • Level 2 DNP3 supports SCADA applications
    • Multiple communication ports, including optional Ethernet or IEC 61850
    • *New 4G LTE™ Underglass Wireless Cellular
    • Advanced security with Sealing Switch capability
    • Data Push to Cloud Servers with Ethernet Card and Enhanced Security for Ethernet Communication

    *LTE is a trademark of ETSI

  • Shark 270 Advanced Screen Designer
    Shark® 270
    Advanced Screen Designer
    The Shark® 270 meter offers the Screen Designer, which lets the user build display screens with information on anything the meter measures.
    • Meter comes with many pre-configured screens, which can be edited as needed.
    • The user can custom design LCD display screens to meet any application need.
    • Screens are assignable to 3 View Modes.
    • The meter has memory for up to 250 screens.
    • Water, gas, and other types of usage can be displayed.
    • Ambient and transformer temperature, or any critical operational data, can be shown.
    Shark® 270
    Advanced Screen Designer
    Shark® 270
    Advanced Screen Designer

    The Shark® 270 meter offers the Screen Designer, which lets the user build display screens with information on anything the meter measures.

    • Meter comes with many pre-configured screens, which can be edited as needed.
    • The user can custom design LCD display screens to meet any application need.
    • Screens are assignable to 3 View Modes.
    • The meter has memory for up to 250 screens.
    • Water, gas, and other types of usage can be displayed.
    • Ambient and transformer temperature, or any critical operational data, can be shown.
    The Shark® 270 meter offers the Screen Designer, which lets the user build display screens with information on anything the meter measures.
    • Meter comes with many pre-configured screens, which can be edited as needed.
    • The user can custom design LCD display screens to meet any application need.
    • Screens are assignable to 3 View Modes.
    • The meter has memory for up to 250 screens.
    • Water, gas, and other types of usage can be displayed.
    • Ambient and transformer temperature, or any critical operational data, can be shown.
    Shark® 270
    Advanced Screen Designer
    The Shark® 270 meter offers the Screen Designer, which lets the user build display screens with information on anything the meter measures.
    • Meter comes with many pre-configured screens, which can be edited as needed.
    • The user can custom design LCD display screens to meet any application need.
    • Screens are assignable to 3 View Modes.
    • The meter has memory for up to 250 screens.
    • Water, gas, and other types of usage can be displayed.
    • Ambient and transformer temperature, or any critical operational data, can be shown.
  • Shark 270 Data Pust Email Features
    Shark® 270
    Data/Push Email Features

    Perfect for Cloud and IOT with INP100S Ethernet Card

    • Perform Data Push to Cloud servers using JSON structure, e.g., Lucid's BuildingOS.
    • Program email on alarm conditions.
    • Program periodic notification email of values, e.g., demand and energy consumption.
    • Email notification supports energy dashboards and other cloud software.
    • Email notification is essential for IOT applications, which integrate many pieces of apparatus.
    Shark® 270
    Data/Push Email Features
    Shark® 270
    Data/Push Email Features

    Perfect for Cloud and IOT with INP100S Ethernet Card

    • Perform Data Push to Cloud servers using JSON structure, e.g., Lucid's BuildingOS.
    • Program email on alarm conditions.
    • Program periodic notification email of values, e.g., demand and energy consumption.
    • Email notification supports energy dashboards and other cloud software.
    • Email notification is essential for IOT applications, which integrate many pieces of apparatus.

    Perfect for Cloud and IOT with INP100S Ethernet Card

    • Perform Data Push to Cloud servers using JSON structure, e.g., Lucid's BuildingOS.
    • Program email on alarm conditions.
    • Program periodic notification email of values, e.g., demand and energy consumption.
    • Email notification supports energy dashboards and other cloud software.
    • Email notification is essential for IOT applications, which integrate many pieces of apparatus.
    Shark® 270
    Data/Push Email Features

    Perfect for Cloud and IOT with INP100S Ethernet Card

    • Perform Data Push to Cloud servers using JSON structure, e.g., Lucid's BuildingOS.
    • Program email on alarm conditions.
    • Program periodic notification email of values, e.g., demand and energy consumption.
    • Email notification supports energy dashboards and other cloud software.
    • Email notification is essential for IOT applications, which integrate many pieces of apparatus.
  • Shark 270 Standard & Optional Communications
    Shark® 270
    Standard & Optional Communication
    • Standard RS485 port speaking Modbus RTU/ASCII, Level 2 DNP3.
    • Standard ANSI Type 2 Optical port speaking Modbus RTU/ASCII.
    • Optional Ethernet Modbus TCP/DNP3 and IEC 61850 protocol server.
    • Optional Serial Supporting Modbus ASCII/RTU and Level 2 DNP3.

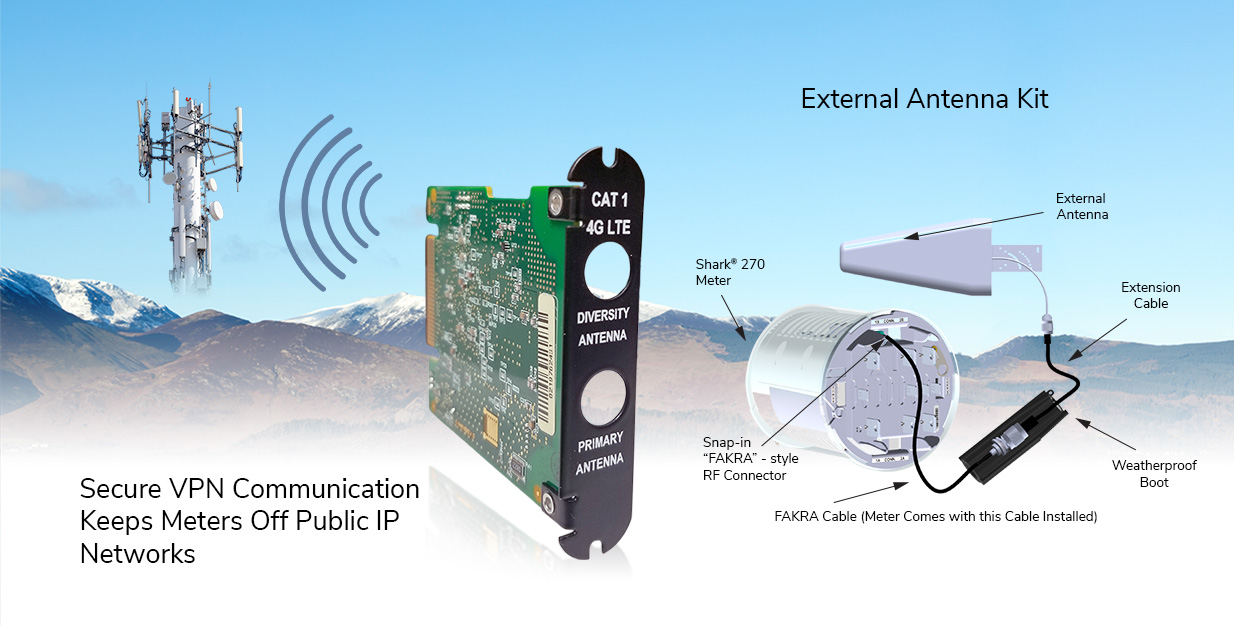

    • 4G LTETM Underglass Wireless Cellular Card.
    Shark® 270
    Standard & Optional Communication
    Shark® 270
    Standard & Optional
    Communication
    • Standard RS485 port speaking Modbus RTU/ASCII, Level 2 DNP3.
    • Standard ANSI Type 2 Optical port speaking Modbus RTU/ASCII.
    • Optional Ethernet Modbus TCP/DNP3 and IEC 61850 protocol server.
    • Optional Serial Supporting Modbus ASCII/RTU and Level 2 DNP3.
    • 4G LTETM Underglass Wireless Cellular Card.
    • Standard RS485 port speaking Modbus RTU/ASCII, Level 2 DNP3.
    • Standard ANSI Type 2 Optical port speaking Modbus RTU/ASCII.
    • Optional Ethernet Modbus TCP/DNP3 and IEC 61850 protocol server.
    • Optional Serial Supporting Modbus ASCII/RTU and Level 2 DNP3.
    • 4G LTETM Underglass Wireless Cellular Card.
    Shark® 270
    Standard & Optional Communication
    • Standard RS485 port speaking Modbus RTU/ASCII, Level 2 DNP3.
    • Standard ANSI Type 2 Optical port speaking Modbus RTU/ASCII.
    • Optional Ethernet Modbus TCP/DNP3 and IEC 61850 protocol server.
    • Optional Serial Supporting Modbus ASCII/RTU and Level 2 DNP3.
    • 4G LTETM Underglass Wireless Cellular Card.
  • Shark 270 Power Quality measurement & Analysis
    Shark® 270
    Power Quality Measurement & Analysis
    The Shark® 270 meter records up to 512 samples per cycle for a voltage sag or swell, or a current fault event. Waveform records are programmable to the desired sampling rate. The meter's advanced DSP design allows power quality triggers to be based on a 1 cycle updated RMS.

    Hundreds of events can be stored until the memory fills. The meter stores waveform data in a first-in/first-out circular buffer to insure data is always recording.
    Shark® 270
    Power Quality Measurement & Analysis
    Shark® 270
    Power Quality Measurement
    & Analysis
    The Shark® 270 meter records up to 512 samples per cycle for a voltage sag or swell, or a current fault event. Waveform records are programmable to the desired sampling rate. The meter's advanced DSP design allows power quality triggers to be based on a 1 cycle updated RMS.

    Hundreds of events can be stored until the memory fills. The meter stores waveform data in a first-in/first-out circular buffer to insure data is always recording.
    The Shark® 270 meter records up to 512 samples per cycle for a voltage sag or swell, or a current fault event. Waveform records are programmable to the desired sampling rate. The meter's advanced DSP design allows power quality triggers to be based on a 1 cycle updated RMS.

    Hundreds of events can be stored until the memory fills. The meter stores waveform data in a first-in/first-out circular buffer to insure data is always recording.
    Shark® 270
    Power Quality Measurement & Analysis
    The Shark® 270 meter records up to 512 samples per cycle for a voltage sag or swell, or a current fault event. Waveform records are programmable to the desired sampling rate. The meter's advanced DSP design allows power quality triggers to be based on a 1 cycle updated RMS.

    Hundreds of events can be stored until the memory fills. The meter stores waveform data in a first-in/first-out circular buffer to insure data is always recording.
  • Shark 270 field Expendable I/O & communication
    Shark® 270
    Field-expandable I/O & Communication
    The Shark® 270 meter offers unequaled I/O expandability. Using the two universal option slots, the unit can be easily configured to accept new I/O cards even after installation. The unit auto-detects installed I/O option cards. Up to 2 cards of any type can be used per meter. When using energy metering data, it’s imperative to not only measure the data, but also to be able to communicate real time data, in order to meet many operational needs.

    The Shark® 270 meter is able to send data to many different systems, using multiple open protocols. These protocols include Modbus RTU/ASCII/TCP, Level 2 DNP3 and IEC 61850. The meter’s communication architecture is flexible, and designed to integrate directly into most existing infrastructure systems.

    *Only one Ethernet card - either INP100S or INP300S - can be installed in a meter.
    Shark® 270
    Field-expandable I/O & Communication
    Shark® 270
    Field-expandable I/O
    & Communication
    The Shark® 270 meter offers unequaled I/O expandability. Using the two universal option slots, the unit can be easily configured to accept new I/O cards even after installation. The unit auto-detects installed I/O option cards. Up to 2 cards of any type can be used per meter. When using energy metering data, it’s imperative to not only measure the data, but also to be able to communicate real time data, in order to meet many operational needs.

    The Shark® 270 meter is able to send data to many different systems, using multiple open protocols. These protocols include Modbus RTU/ASCII/TCP, Level 2 DNP3 and IEC 61850. The meter’s communication architecture is flexible, and designed to integrate directly into most existing infrastructure systems.

    *Only one Ethernet card - either INP100S or INP300S - can be installed in a meter.
    The Shark® 270 meter offers unequaled I/O expandability. Using the two universal option slots, the unit can be easily configured to accept new I/O cards even after installation. The unit auto-detects installed I/O option cards. Up to 2 cards of any type can be used per meter. When using energy metering data, it’s imperative to not only measure the data, but also to be able to communicate real time data, in order to meet many operational needs.

    The Shark® 270 meter is able to send data to many different systems, using multiple open protocols. These protocols include Modbus RTU/ASCII/TCP, Level 2 DNP3 and IEC 61850. The meter’s communication architecture is flexible, and designed to integrate directly into most existing infrastructure systems.

    *Only one Ethernet card - either INP100S or INP300S - can be installed in a meter.
    Shark® 270
    Field-expandable I/O & Communication
    The Shark® 270 meter offers unequaled I/O expandability. Using the two universal option slots, the unit can be easily configured to accept new I/O cards even after installation. The unit auto-detects installed I/O option cards. Up to 2 cards of any type can be used per meter. When using energy metering data, it’s imperative to not only measure the data, but also to be able to communicate real time data, in order to meet many operational needs.

    The Shark® 270 meter is able to send data to many different systems, using multiple open protocols. These protocols include Modbus RTU/ASCII/TCP, Level 2 DNP3 and IEC 61850. The meter’s communication architecture is flexible, and designed to integrate directly into most existing infrastructure systems.

    *Only one Ethernet card - either INP100S or INP300S - can be installed in a meter.

    INP100S:
    100BaseT Ethernet Capability

    INP300S:
    IEC 61850 Protocol Ethernet Card

    1mAOS:
    Four Channel Bi-directional 0-1 mA Outputs

    20mAOS:
    Four Channel 4-20 mA Outputs

    PO1S:
    Four Pulse Outputs/Four Status Inputs

    RO1S:
    Two Relay Outputs/Two Status Inputs

    RS1S:
    Serial Communication Card

    4GLTE:
    Underglass 4G LTE Wireless Cellular Communication

    INP100S:
    100BaseT Ethernet Capability

    20mAOS:
    Four Channel 4-20
    mA Outputs

    RS1S:
    Serial Communication Card

    INP300S:
    IEC 61850 Protocol Ethernet Card

    PO1S:
    Four Pulse Outputs/Four Status Inputs

    4GLTE:
    Underglass 4G LTE Wireless Cellular Communication

    1mAOS:
    Four Channel Bi-directional 0-1 mA Outputs

    RO1S:
    Two Relay Outputs/Two Status Inputs

    INP100S:
    100BaseT Ethernet Capability

    20mAOS:
    Four Channel 4-20 mA Outputs

    RS1S:
    Serial Communication Card

    INP300S:
    IEC 61850
    Protocol
    Ethernet Card

    PO1S:
    Four Pulse
    Outputs/Four
    Status Inputs

    4GLTE:
    Underglass 4G
    LTE Wireless
    Cellular
    Communication

    1mAOS:
    Four Channel Bi-directional 0-1 mA Outputs

    RO1S:
    Two Relay Outputs/Two Status Inputs

  • Shark 270 better communication for advanced Smart Substations
    Shark® 270
    Better Communication for Advanced Smart Substations
    • The Shark® 270 meter offers advanced communication usually found only in higher-end, more costly solutions.
    • The meter supports smart substation solutions with Level 2 DNP3 and IEC 61850 protocols.
    • The Shark® 270 meter can send data to multiple software systems, to support integrated applications.
    • The meter is capable of communicating with an RTU to get SCADA information.
    • The meter can supply its energy and power quality information to other software systems.
    Shark® 270
    Better Communication for Advanced
    Smart Substations
    Shark® 270
    Better Communication for
    Advanced Smart Substations
    • The Shark® 270 meter offers advanced communication usually found only in higher-end, more costly solutions.
    • The meter supports smart substation solutions with Level 2 DNP3 and IEC 61850 protocols.
    • The Shark® 270 meter can send data to multiple software systems, to support integrated applications.
    • The meter is capable of communicating with an RTU to get SCADA information.
    • The meter can supply its energy and power quality information to other software systems.
    • The Shark® 270 meter offers advanced communication usually found only in higher-end, more costly solutions.
    • The meter supports smart substation solutions with Level 2 DNP3 and IEC 61850 protocols.
    • The Shark® 270 meter can send data to multiple software systems, to support integrated applications.
    • The meter is capable of communicating with an RTU to get SCADA information.
    • The meter can supply its energy and power quality information to other software systems.
    Shark® 270
    Better Communication for Advanced Smart Substations
    • The Shark® 270 meter offers advanced communication usually found only in higher-end, more costly solutions.
    • The meter supports smart substation solutions with Level 2 DNP3 and IEC 61850 protocols.
    • The Shark® 270 meter can send data to multiple software systems, to support integrated applications.
    • The meter is capable of communicating with an RTU to get SCADA information.
    • The meter can supply its energy and power quality information to other software systems.
  • Shark 270 data trending & Analysis
    Shark® 270
    Data Trending & Analysis
    The Shark® 270 meter has up to 128 MB of memory for data logging, to be used for historical trends, limit alarms, I/O changes and sequence of events. With the meter's advanced storage, the unit can be programmed to store historical and waveform data for many years.

    The unit has a real time clock that allows for time stamping of all the data in the instrument when log events are created. The clock is accurate to 3 ppm and is very stable over temperature.
    Shark® 270
    Data Trending & Analysis
    Shark® 270
    Data Trending & Analysis
    The Shark® 270 meter has up to 128 MB of memory for data logging, to be used for historical trends, limit alarms, I/O changes and sequence of events. With the meter's advanced storage, the unit can be programmed to store historical and waveform data for many years.

    The unit has a real time clock that allows for time stamping of all the data in the instrument when log events are created. The clock is accurate to 3 ppm and is very stable over temperature.
    The Shark® 270 meter has up to 128 MB of memory for data logging, to be used for historical trends, limit alarms, I/O changes and sequence of events. With the meter's advanced storage, the unit can be programmed to store historical and waveform data for many years.

    The unit has a real time clock that allows for time stamping of all the data in the instrument when log events are created. The clock is accurate to 3 ppm and is very stable over temperature.
    Shark® 270
    Data Trending & Analysis
    The Shark® 270 meter has up to 128 MB of memory for data logging, to be used for historical trends, limit alarms, I/O changes and sequence of events. With the meter's advanced storage, the unit can be programmed to store historical and waveform data for many years.

    The unit has a real time clock that allows for time stamping of all the data in the instrument when log events are created. The clock is accurate to 3 ppm and is very stable over temperature.
  • Shark 270 highly accurate measurments
    Shark® 270
    Highly Accurate Measurements for Grid
    Metering & Power Generation
    • Highly Safe Current Inputs.
    • Meets & exceeds ANSI C12.20 Class 0.1% & IEC 62053-23 CL 0.2S standards.
    • 24 bit ADC for energy accuracy.
    • Time of Use functionality.
    • Transformer/Line Loss Compensation.
    • Test Mode to verify accuracy.
    • CT/PT Compensation.
    • Extensive power quality & waveform recording.
    • Up to 128 MB memory for data logging and storage.
    • Multiple communication ports, including optional Ethernet or IEC 61850.
    Shark® 270
    Highly Accurate Measurements for Grid
    Metering & Power Generation
    Shark® 270 Highly Accurate
    Measurements for Grid Metering
    & Power Generation
    • Highly Safe Current Inputs.
    • Meets & exceeds ANSI C12.20 Class 0.1% & IEC 62053-23 CL 0.2S standards.
    • 24 bit ADC for energy accuracy.
    • Time of Use functionality.
    • Transformer/Line Loss Compensation.
    • Test Mode to verify accuracy.
    • CT/PT Compensation.
    • Extensive power quality & waveform recording.
    • Up to 128 MB memory for data logging and storage.
    • Multiple communication ports, including optional Ethernet or IEC 61850.
    • Highly Safe Current Inputs.
    • Meets & exceeds ANSI C12.20 Class 0.1% & IEC 62053-23 CL 0.2S standards.
    • 24 bit ADC for energy accuracy.
    • Time of Use functionality.
    • Transformer/Line Loss Compensation.
    • Test Mode to verify accuracy.
    • CT/PT Compensation.
    • Extensive power quality & waveform recording.
    • Up to 128 MB memory for data logging and storage.
    • Multiple communication ports, including optional Ethernet or IEC 61850.
    Shark® 270
    Highly Accurate Measurements for Grid Metering
    & Power Generation
    • Highly Safe Current Inputs.
    • Meets & exceeds ANSI C12.20 Class 0.1% & IEC 62053-23 CL 0.2S standards.
    • 24 bit ADC for energy accuracy.
    • Time of Use functionality.
    • Transformer/Line Loss Compensation.
    • Test Mode to verify accuracy.
    • CT/PT Compensation.
    • Extensive power quality & waveform recording.
    • Up to 128 MB memory for data logging and storage.
    • Multiple communication ports, including optional Ethernet or
      IEC 61850.
HomeProductsShark® 270 Revenue Meter

Shark® 270 Revenue Meter

The Shark® 270 is a socket form revenue meter designed for both critical meter applications and basic commercial/industrial metering applications. It is a significant departure from existing technology, incorporating high-end revenue metering functions in an economical design.

Primary Revenue Metering

The Shark® 270 meter is a full four quadrant, bidirectional revenue meter that can also be used for inter-tie metering. Its 0.1% metrology accuracy meets and exceeds all the accuracy requirements of ANSI C12.20 Class 0.1% and IEC 62053-22 CL 0.2S. The meter has advanced revenue metering features that allow it to be used not only for measuring basic energy, but also for providing a full complement of necessary tools, such as transformer/line loss compensation, CT/PT compensation, advanced test mode, perpetual TOU, and extensive logging for interval energy storage.

Extensive Communication Capabilities

The Shark® 270 revenue meter also has one of the industry’s most comprehensive communication capabilities, including extensive Ethernet functionality and 4G LTE™ underglass cellular. It can send out data via a host of protocols, including Modbus, Level 2 DNP3, and IEC 61850, to help in solving any metering data application.

Field Expandable I/O

The Shark® 270 revenue meter is field upgradeable. Expandable I/O cards include:

  • 4G LTE Wireless Card
  • RS1S: Serial Communication Card with RS232/485 Modbus and DNP3
  • INP100S: 100BaseT Ethernet Card with Modbus and DNP3
  • INP300S: IEC 61850 Protocol Ethernet Card
  • 1mAOS: Four Channel Bi-directional 0-1 mA Outputs
  • 20mAOS: Four Channel 4-20 mA Outputs
  • PO1S: Four Pulse Outputs/Four Status Inputs
  • RO1S: Two Relay Outputs/Two Status Inputs

Data Trending and Analysis

The Shark® 270 meter has up to 128 MB of memory for data logging, used for historical trends, limit alarms, I/O changes and sequence of events. The meter’s advanced storage means the unit can be programmed to store historical and waveform data for many years. The unit’s real-time clock allows for time stamping of all the data in the instrument when log events are created. The clock is accurate to 3 ppm and is very stable over temperature.

Power Quality Measurement and Analysis

The Shark® 270 revenue meter records up to 512 samples per cycle for a voltage sag or swell, or a current fault event. The unit provides the pre and post-event recording capability shown in the table below. Waveform records are programmable to the desired sampling rate. V5 provides up to 128 MB of storage.

The meter’s advanced DSP design allows power quality triggers to be based on a 1 cycle updated RMS. Hundreds of events can be stored until the memory fills. The meter stores waveform data in a first-in/first-out circular buffer to insure data is always recording.

The unit uniquely offers a waveform scope to view the real time waveform for voltage and current. The waveform scope allows the meter to be used as a basic oscilloscope throughout a power system.

    Email Us

    X

    X
    Download
    X

    Reach Us

    +
    =
    (Are you human, or spambot?)
