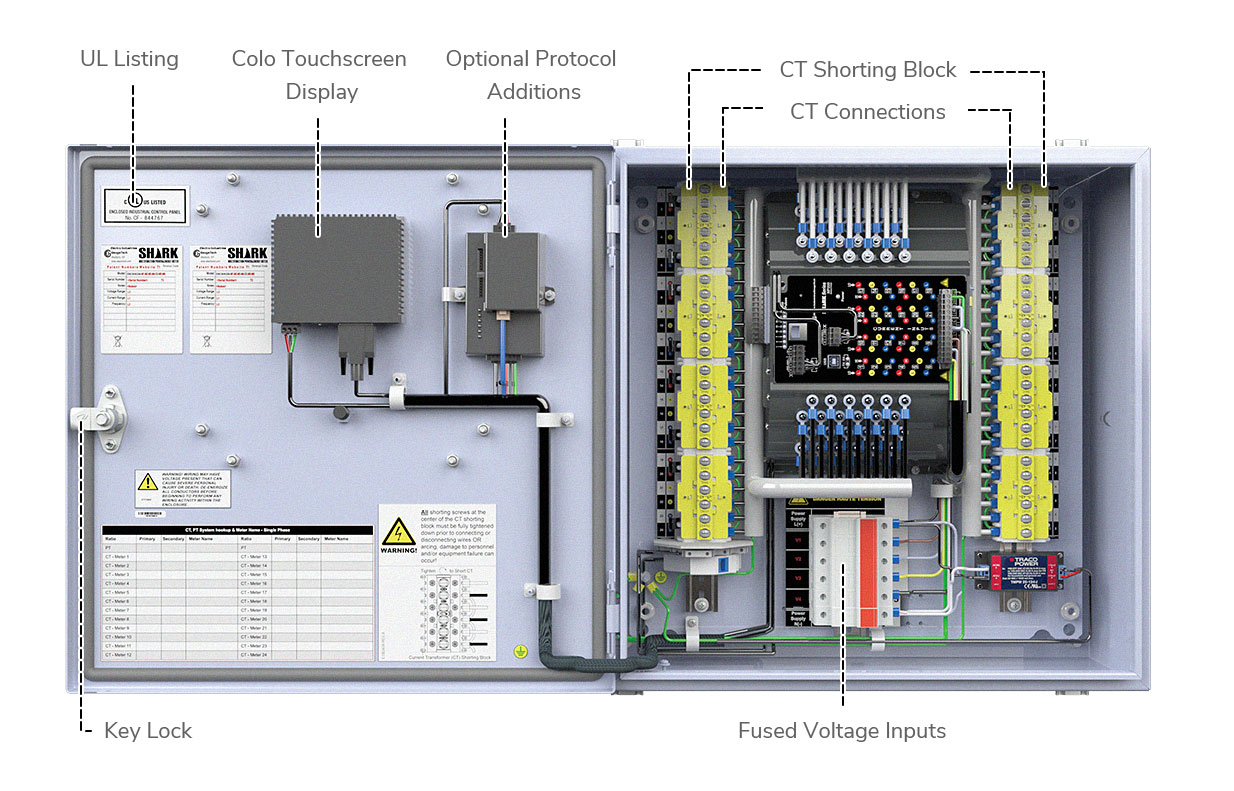

    CT Connections
    CT Shorting Block

    Key Lock

    Optional Protocol Additions

    Fused Voltage Inputs

    Neutral Connection
  • Shark® MP200
    in Enclosure
    • 24 Single Phase Circuits
    • 8 Three Phase Circuits
    • Touch Screen and Display
    • All Electrical Fusing and Protection Pre-wired
    Shark® MP200
    in Enclosure
    Shark® MP200
    in Enclosure
    • 24 Single Phase Circuits
    • 8 Three Phase Circuits
    • Touch Screen and Display
    • All Electrical Fusing and Protection Pre-wired
    • 24 Single Phase Circuits
    • 8 Three Phase Circuits
    • Touch Screen and Display
    • All Electrical Fusing and Protection Pre-wired
    Shark® MP200
    in Enclosure
    • 24 Single Phase Circuits
    • 8 Three Phase Circuits
    • Touch Screen and Display
    • All Electrical Fusing and Protection Pre-wired
  • Shark® MP200
    in Enclosure
    BACnet MS/TP
    Shark® MP200
    in Enclosure
    Shark® MP200
    in Enclosure
    • Easy High Density Retrofit Meter Solution
    • Extends Switchgear Capability
    • Nema 1 Type Rated Enclosure
    • Eliminates wiring and Installation Errors
    • Optional BACnet or LonWorks
      Communication Modules
    • Easy High Density Retrofit Meter Solution
    • Extends Switchgear Capability
    • Nema 1 Type Rated Enclosure
    • Eliminates wiring and Installation Errors
    • Optional BACnet or LonWorks
      Communication Modules
    Shark® MP200
    in Enclosure
    • Easy High Density Retrofit Meter Solution
    • Extends Switchgear Capability
    • Nema 1 Type Rated Enclosure
    • Eliminates wiring and Installation Errors
    • Optional BACnet or LonWorks
      Communication Modules

    WiFi Ethernet

    BACnet/IP
    LonWorks®

    Modbus®
    RS485

    Modbus® Ethernet

    Easily Connects to Most 3rd Party Systems

HomeProductsShark® MP200™ in Enclosure

Shark® MP200™ in Enclosure

EIG’s MP200™ in enclosure lets you expand your switchgear capability and/or easily meter circuits without expensive and time-consuming redesign. Simply mount the enclosure in any convenient location, next to your switchgear or on a wall, and you are ready to go with no downtime. Using the MP200™ in enclosure allows you to meter up to 24 single phase or 8 three phase loads and send the data with a variety of communication protocols.

This is a perfect solution for a retrofit where there is no metering compartment available. The power meter comes standard with a NEMA 1 rated enclosure and is factory wired with the meter installed. Standard equipment includes voltage fuses and shorting blocks for current transformers. The system will work directly with 120/208 and 277/480 Volt power systems.

The enclosure can be ordered with either the three phase MP200™-Y or the single phase MP200™-S power meter. Optional CTs are available for each circuit. The CTs can be ordered as either split core or solid core, depending on the needs of the installation. Optional ProtoCom and ProtoCom-Lon modules offer BACnet® and LonWorks communication, enabling the MP200™ in enclosure to fit seamlessly into existing Building Automation System applications.

The unit is equipped with either a 3.5″ or 5.7″ color touchscreen display, to make data reading simple and easy. The display provides extensive circuit data for every load, including circuit analysis.

LonWorks® is a registered trademark of Echelon Corp. Modbus® is a registered trademark of Schneider Electric, licensed to the Modbus Organization, Inc. BACnet® is a registered trademark of ASHRAE. MP200™ is a trademark of Electro Industries/GaugeTech.
