SWITCHBOARD METER MULTIFUNCTION

Shark^® 50

Multifunction Electrical Power Meter
- 0.5% Class Accuracy
- Great for Retrofit and New applications
- Extends switchgear capability
- RS485 Modbus Output
- KYZ Output Pulse
- One of the best Power Meters in its class
Shark^® 50

Multifunction Electrical Power Meter

Shark^® 50

Multifunction Electrical Power
Meter
- 0.5% Class Accuracy
- Great for Retrofit and New applications
- Extends switchgear capability
- RS485 Modbus Output
- KYZ Output Pulse
- One of the best Power Meters in its class
- 0.5% Class Accuracy
- Great for Retrofit and New applications
- Extends switchgear capability
- RS485 Modbus Output
- KYZ Output Pulse
- One of the best Power Meters in its class
Shark^® 50

Multifunction Electrical Power Meter
- 0.5% Class Accuracy
- Great for Retrofit and New applications
- Extends switchgear capability
- RS485 Modbus Output
- KYZ Output Pulse
- One of the best Power Meters in its class
Shark^® 50
Applications Include
- Commercial Metering
- Industrial Metering
- Campus Metering
- Submetering
- Indication Meter Replacement
Shark^® 50
Applications Include

Shark^® 50
Applications Include
- Commercial Metering
- Industrial Metering
- Campus Metering
- Submetering
- Indication Meter Replacement
- Commercial Metering
- Industrial Metering
- Campus Metering
- Submetering
- Indication Meter Replacement
Shark^® 50
Applications Include
- Commercial Metering
- Industrial Metering
- Campus Metering
- Submetering
- Indication Meter Replacement
Shark^® 50
Simple to Use Easy to Install
- Direct Retrofit to ANSI and DIN Panel Meters
- Optional RS485 Modbus Output
Shark^® 50
Simple to Use Easy to Install

Shark^® 50
Simple to Use Easy to Install
- Direct Retrofit to ANSI and DIN Panel Meters
- Optional RS485 Modbus Output
- Direct Retrofit to ANSI and DIN Panel Meters
- Optional RS485 Modbus Output
Shark^® 50
Simple to Use Easy to Install
- Direct Retrofit to ANSI and DIN Panel Meters
- Optional RS485 Modbus Output
Shark^® 50
Rugged & Safe Voltage and Terminations
- Highly Safe Current Inputs
- Voltage Inputs to 690 volts L-N
- Color coordinated labeling to reduce wiring errors
- Simply labeled Com ports and KYZ pulses
Shark^® 50
Rugged & Safe Voltage and Terminations

Shark^® 50
Rugged & Safe Voltage and
Terminations
- Highly Safe Current Inputs
- Voltage Inputs to 690 volts L-N
- Color coordinated labeling to reduce wiring errors
- Simply labeled Com ports and KYZ pulses
- Highly Safe Current Inputs
- Voltage Inputs to 690 volts L-N
- Color coordinated labeling to reduce wiring errors
- Simply labeled Com ports and KYZ pulses
Shark^® 50
Rugged & Safe Voltage and Terminations
- Highly Safe Current Inputs
- Voltage Inputs to 690 volts L-N
- Color coordinated labeling to reduce wiring errors
- Simply labeled Com ports and KYZ pulses
Tx Rx Indicator
LEDs

RS485
Communication

Pulse Outputs
for Energy

Universal Voltage
Inputs

Current
"Gills"

Color-Coordinated Inputs
Shark^® 50
Universal ANSI and DIN Mounting

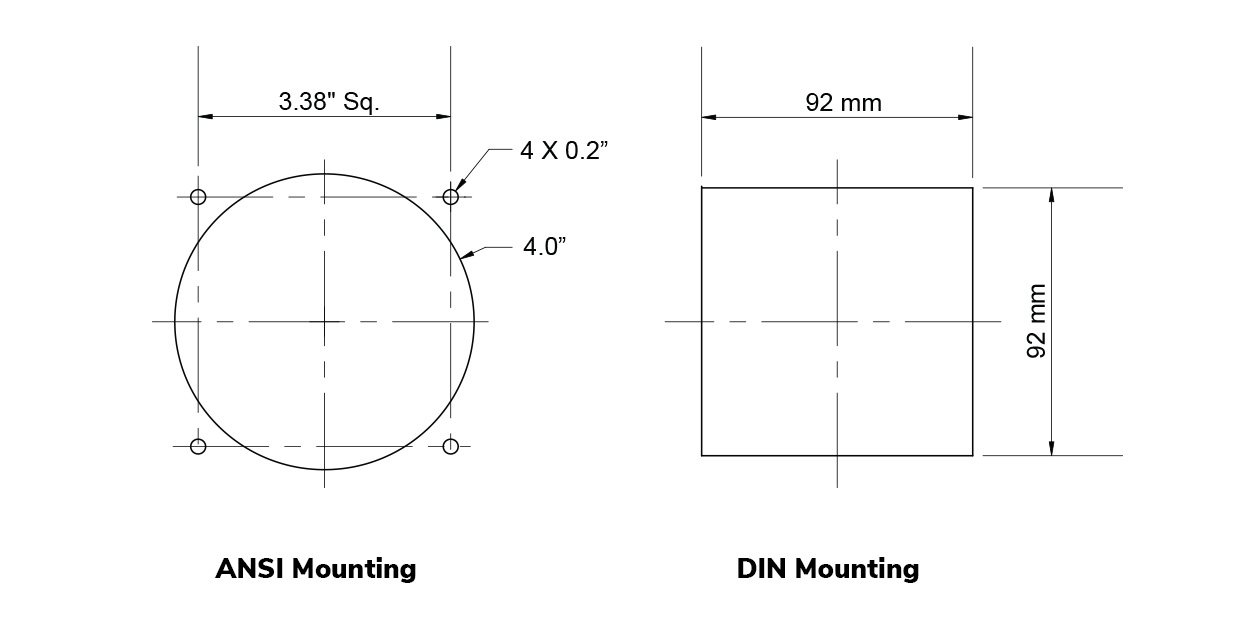

The unit mounts directly in an ANSI C39.1 (4" round form) or an IEC 92 mm DIN square form. This is perfect for new installations and for existing panels. In new installations, simply use DIN or ANSI punches. For existing panels, pull out old analog meters and replace them with the Shark^® 50 meter. The meter uses standard voltage and current inputs so that CT and PT wiring does not need to be replaced.
- Perfect for switchgear panel direct retrofit
- Uses minimal panel space
- Mounts in only 4.25" panel depth
Shark^® 50
Universal ANSI and DIN Mounting

Shark^® 50
Universal ANSI and DIN
Mounting
The unit mounts directly in an ANSI C39.1 (4" round form) or an IEC 92 mm DIN square form. This is perfect for new installations and for existing panels. In new installations, simply use DIN or ANSI punches. For existing panels, pull out old analog meters and replace them with the Shark^® 50 meter. The meter uses standard voltage and current inputs so that CT and PT wiring does not need to be replaced.
- Perfect for switchgear panel direct retrofit
- Uses minimal panel space
- Mounts in only 4.25" panel depth
The unit mounts directly in an ANSI C39.1 (4" round form) or an IEC 92 mm DIN square form. This is perfect for new installations and for existing panels. In new installations, simply use DIN or ANSI punches. For existing panels, pull out old analog meters and replace them with the Shark^® 50 meter. The meter uses standard voltage and current inputs so that CT and PT wiring does not need to be replaced.
- Perfect for switchgear panel direct retrofit
- Uses minimal panel space
- Mounts in only 4.25" panel depth
Shark^® 50
Universal ANSI and DIN Mounting
The unit mounts directly in an ANSI C39.1 (4" round form) or an IEC 92 mm DIN square form. This is perfect for new installations and for existing panels. In new installations, simply use DIN or ANSI punches. For existing panels, pull out old analog meters and replace them with the Shark^® 50 meter. The meter uses standard voltage and current inputs so that CT and PT wiring does not need to be replaced.
- Perfect for switchgear panel direct retrofit
- Uses minimal panel space
- Mounts in only 4.25" panel depth
Shark^® 50
Intuitive Design
- Designed to be easy to navigate
- RS485 (Option 485P) — RS485 communication using Modbus Protocol. Baud rates are from 9600 to 57600.
- KYZ Pulse — In addition to the RS485, this option also includes a KYZ pulse mapped to positive energy
- Superior user presentation
Shark^® 50
Intuitive Design

Shark^® 50
Intuitive Design
- Designed to be easy to navigate
- RS485 (Option 485P) — RS485 communication using Modbus Protocol. Baud rates are from 9600 to 57600.
- KYZ Pulse — In addition to the RS485, this option also includes a KYZ pulse mapped to positive energy
- Superior user presentation
- Designed to be easy to navigate
- RS485 (Option 485P) — RS485 communication using Modbus Protocol. Baud rates are from 9600 to 57600.
- KYZ Pulse — In addition to the RS485, this option also includes a KYZ pulse mapped to positive energy
- Superior user presentation
Shark^® 50
Intuitive Design
- Designed to be easy to navigate
- RS485 (Option 485P) — RS485 communication using Modbus Protocol. Baud rates are from 9600 to 57600.
- KYZ Pulse — In addition to the RS485, this option also includes a KYZ pulse mapped to positive energy
- Superior user presentation
Reading Type
Designator

Large .56" LEDs

Screen
Selector

Auto Scale
Indicator

% of Load Bar

Home ProductsShark 50 Multifunction Electrical Switchboard Meter

Shark 50 Multifunction Electrical Switchboard Meter

Electro Industries introduces an affordable 0.5% Class electrical switchboard meter. Utilizing bright and large 0.56″ LED displays, this unit is designed to be installed in electrical panels and switchgear. The Shark® 50 meter includes a unique anti-dither algorithm to improve reading stability, benefiting operators. The unit utilizes high speed DSP technology with high resolution A/D conversion to provide stable and reliable measurements. The Shark® 50 switchboard meter is easy to use and install and is perfect for new metering applications and as a simple replacement of existing analog meters.

Features

0.5% Class Accuracy Measurements Including Voltage, Current, Power, Frequency, Energy, Etc.
Optional RS485 with Modbus Protocol
Large Bright Red LED Display
% of Load Bar for Analog Meter Perception
Fits Both ANSI and DIN Cut-outs
Great For Retrofit and New Switchboard Meter Applications
Uses Minimal Panel Space and Depth

Applications

Commercial Metering
Industrial Metering
Power Generation
Campus Metering
Submetering
Indication Meter Replacement

Easy to Use and Install

From user interface to mechanical construction, the Shark® 50 switchboard meter was designed to be easy and intuitive, so an installer with minimal meter experience and training can easily install and use this product.
